Product information：

This product can provide three monochromatic uniform light sources: white light composite uniform light source and red, green and blue uniform light source to simulate weak light environments such as starlight and moonlight. It is used to test the performance of devices in different weak light environments, light transmittance and reflectivity, so as to realize the function of uniform light source. It can be used for the calibration of CCD detector and other photoelectric devices, the performance parameter test in weak light environment, and the transmittance and reflectivity of other samples; Experiments and applications requiring uniform light sources. Bus design, the whole machine is packaged and shipped without installation. It is equipped with a fixed protective socket. Users only need to connect a power cable and a USB cable to work. Fully embody the enterprise service concept with customer application as the core.

Product information:

Main performance indexes:

1. The integrating sphere has a diameter of 1m, a light outlet of 200mm, and the center height of the light outlet is 1.2m, adjustable ± 20mm.

2. Spectral range: 300-2500nm; Color temperature of light source 2856K ± 50K;

3. The illumination uniformity of light outlet is better than 96%;

4. The integrating sphere is equipped with three 30W tungsten halogen lamps. The bulb power can be greater. The switches are controlled respectively to meet the needs of different light intensities. The range can be realized by controlling the switches of the three bulbs: 10 ~ 200 ² LX uniform illumination (illumination at the ball wall), (stronger illumination can be obtained by replacing high-power bulbs).

5. The sample mounting bracket is designed at the ball center to facilitate users to place different samples at the ball center. The integrating ball door opening and closing design is convenient to replace samples, and casters are equipped to facilitate fixation and movement.

China Engineering Practice section provides customers with integral ball spraying and renovation business, and can spray stainless steel, aluminum, wooden cases, wall spraying of the whole room and diffuse reflection coating spraying of other special-shaped parts. It can provide spraying of various reflectivity materials: barium sulfate, F4 polytetrafluoroethylene, infrared gold plating, etc.

Product information:

High stability integrating sphere of China Engineering Practice Department:

1. Economical and practical

2. Waterproof, moisture-proof and corrosion resistance

3. High reflectivity and wide spectral range

4. Applicable in near infrared / mid infrared band

Product information:

★ integrating sphere: the inner wall radius of the standard sphere is made of SR250 carbon steel, and the inner wall is sprayed with imported barium sulfate coating, which has good diffuse reflection effect and effective uniform light;

★ support part: high quality aluminum profile support, the height can be adjusted manually, the sphere can rotate by plus or minus 90 °, and can be blackened according to the customer's use;

★ light source adjustment part: electric diaphragm can be installed (minimum) φ 3mm), or the electric double opening slit of our product can be installed, and the slit range is 0- φ 50mm (min. 0)

★ motion control part: our motion control system is equipped as standard, and the software can be opened and used immediately without installation;

★ light source: imported 30W tungsten halogen lamp light source as standard, with long service life;

★ special specifications can be customized.

Product functions:

This product is mainly used for the calibration of CCD photoelectric devices, the performance parameter test of detectors in weak light environment, and the transmittance and reflectivity test of other samples; Other experiments and applications requiring uniform light sources. It can simulate weak light such as starlight and moonlight according to user requirements.

Product information:

Integrating sphere is a hollow sphere whose inner wall is coated with white diffuse reflective material, also known as photometric sphere, luminous flux sphere, etc. One or several window holes are opened on the ball wall as light inlet holes and receiving holes for placing light receiving devices. The inner wall of the integrating sphere should be a good sphere, and its deviation from the ideal sphere should not be greater than 0.2% of the inner diameter. The inner wall of the ball is coated with ideal diffuse reflection material, that is, the material with diffuse reflection coefficient close to 1. The commonly used material is magnesium oxide or barium sulfate. After it is evenly mixed with colloidal adhesive, it is sprayed on the inner wall. The spectral reflectance of magnesium oxide coating in the visible spectrum range is more than 99%. In this way, the light entering the integrating sphere is reflected many times through the inner wall coating to form a uniform illumination on the inner wall. In order to obtain high measurement accuracy, the opening ratio of integrating sphere should be as small as possible. The opening ratio is defined as the ratio of the ball area at the opening of the integrating ball to the inner wall area of the whole ball.

Product information:

Main performance indexes:

1. Integrating ball diameter 300MM, light outlet 80MM;

2. Spectral range: 300-2500NM; Color temperature of light source 2856K ± 50K;

3. The illumination uniformity of light outlet is better than 95%;

4. The illuminance of the integrating sphere is continuously adjustable through the electric diaphragm, and the adjustable range is 0 ~ 102LX (illumination at the ball wall); Adjustable illuminance accuracy 0.001LX; Both light sources are equipped with diaphragm, and the illumination can be adjusted in a large range.

5. Controller communication interface: 232 serial port communication.

Product information:

Instrument purpose:

A collimator obtains a beam from infinity through it, which is called a collimator. It is not only an important tool for assembling and adjusting optical instruments, but also an important part of optical measuring instruments. With different graticules together with micrometer lens or microscope system, the focal length, discrimination rate and other imaging quality of lens group can be measured. Fix the attached adjustable plane reflector on the workpiece with a moving straight line, and use the Gaussian self collimating lens attached to the light tube to observe the straightness of the moving workpiece through the Gaussian eyepiece on the light tube.

Product information:

HGILD10TR-LED three color light source features:

● the light source has three colors, namely red, blue and green, and white is the three-color synthetic light.

● equipped with controller, without debugging, direct use, simple and convenient.

● the color of light source can be controlled by computer or controller.

● the light intensity can be adjusted.

● the light source is an annular uniform light source.

HGILD10TR-LED three color light source product description:

● trichromatic light source controls the trichromatic light source through the controller, which can change the light source color and adjust the light intensity, and the operation is simple.

● the three color light source can be connected to the computer through the data line, and the color of the light source can be controlled and the light intensity can be adjusted through the computer software.

● three color light source can detect spectral power, color temperature, color tolerance, color deviation, color purity, main wavelength, luminous flux, radiation power, optical efficiency and other parameters through integrating sphere.

● trichromatic light source can also be used separately.

Product information:

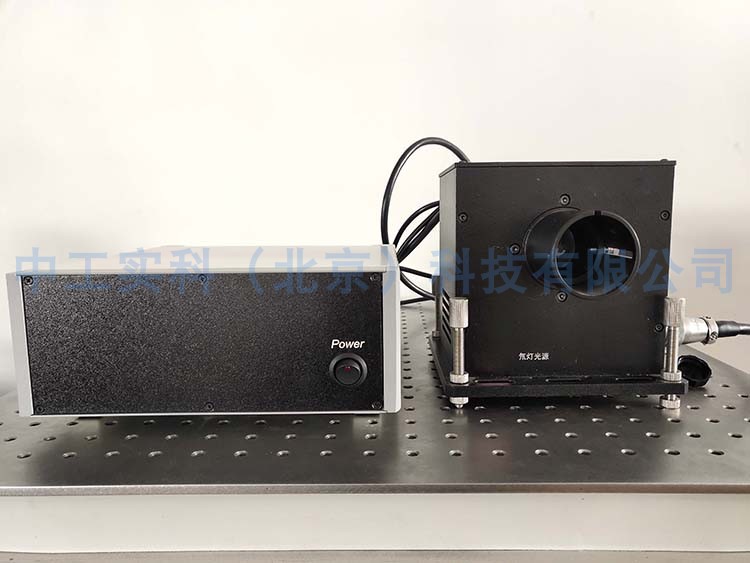

Deuterium lamp light source and power supply:

Deuterium lamp light source is mainly used for ultraviolet, which can reach the vacuum ultraviolet limit of 195nm, and the shorter the wavelength, the higher the brightness, which is higher than that of general tungsten halogen lamps below 360nm. The HGILD30 deuterium lamp light source produced by our company is equipped with a long-life deuterium lamp bulb in the room, which can be replaced by users. It can be used as an independent UV light source, can also be used as a fluorescent excitation light source, or can be used together with the monochromator, spectrometer, sample room, filter wheel, etc. produced by our company to form various application systems.

Product information：

Infrared laser detection card (board), also known as infrared up conversion card, frequency multiplier, infrared detection card and imaging card, can convert various invisible near-infrared band beams into visible light, effectively realize the detection, tracking, calibration and identification of infrared beams, and can be used for near-infrared light detection of various semiconductor lasers, light tracking emitted by infrared light-emitting diodes YAG and other large laser beam calibration, optical fiber communication signal detection and other fields. The infrared detection board is made of up conversion luminescent materials. The powder or ceramic and glass blocks with particle size of 04pm ~ 50pm can be lit up by using 03mw infrared light source. The effective light excitation band is mainly 700nm ~ 10600nm. The same detection board can identify infrared lasers in different bands. The emission intensity is proportional to the excitation power of infrared devices. The products include paperboard, plastic, glass The area, shape, size and color of metals, ceramics, etc.

Product information:

Application of integrating sphere uniform light source system: it is used for the calibration of imaging systems and devices in the laboratory.

Integrating sphere is a hollow sphere whose inner wall is coated with white diffuse reflective material, also known as photometric sphere, luminous flux sphere, etc. One or several window holes are opened on the ball wall as light inlet holes and receiving holes for placing light receiving devices. The inner wall of the integrating sphere is a good sphere, and its deviation from the ideal sphere is usually required to be no more than 0.2% of the inner diameter. The inner wall of the ball is coated with ideal diffuse reflection material, that is, the material with diffuse reflection coefficient close to 1. The commonly used material is barium sulfate, which is evenly mixed with colloidal adhesive and sprayed on the inner wall. The spectral reflectance of barium sulfate coating in the visible spectrum range is more than 99%. In this way, the light entering the integrating sphere is reflected many times through the inner wall coating to form a uniform illumination on the inner wall.

Basic principle of integrating sphere:

The light is collected by the integrating sphere through the sampling port, and is evenly scattered in the integrating sphere after multiple reflections. When the integrating sphere is used to measure the luminous flux, the measurement result can be more reliable. The integrating sphere can reduce and eliminate the measurement error caused by the shape of the light, the divergence angle and the response difference at different positions on the detector.

产品信息：

1.2856k uniform color temperature light source, 30mm outlet (one inlet and one outlet, two outlets).

2. The light inlet is equipped with diaphragm and electric filter wheel, which can realize automatic dimming;

3. The light barrier inside the light inlet, and the illumination uniformity of the light outlet is better than 98%;

4. The minimum illumination can reach 10-7lx and 10-5lx;

5. The optical aperture of the electric filter wheel is 40mm (4 holes);

6. Tungsten halogen lamp light source: 5W, 10W, 30W, 50W optional:

7. Equipment weight: 8kg;

8. The overall dimensions of the equipment are as follows:

9. Stepper motor interface definition:

Key electrical parameters: current 1a, torque 0.12n m. Moment of inertia: 12g Cm ', self weight: 0.15kg
